With rising demands on product quality and increasingly complex component geometries, vacuum potting is becoming more and more important in the production of components. This process minimizes air inclusions and impurities, as the air is completely removed from the process chamber. The result: a significant improvement in the durability and functionality of the components.
The dos vac from dosmatix forms the basis for precise vacuum potting. It enables high vacuum values, short evacuation times and impresses with its ease of use. Extremely efficient process times are also achieved thanks to the fast ventilation.
Deshalb ist ein Standalone-System die richtige Lösung
▶ Flexible system configuration based on specific potting requirements
▶ Improved flowability and optimum wetting of materials for uniform and precise potting
▶ Avoidance of air pockets in difficult component geometries for maximum product quality
▶ Space-optimized design and simple operator handling
▶ Complete solution from a single source
sealing, bonding, grouting, sealing, insulating, thermal management
questions about the product?
contact us:

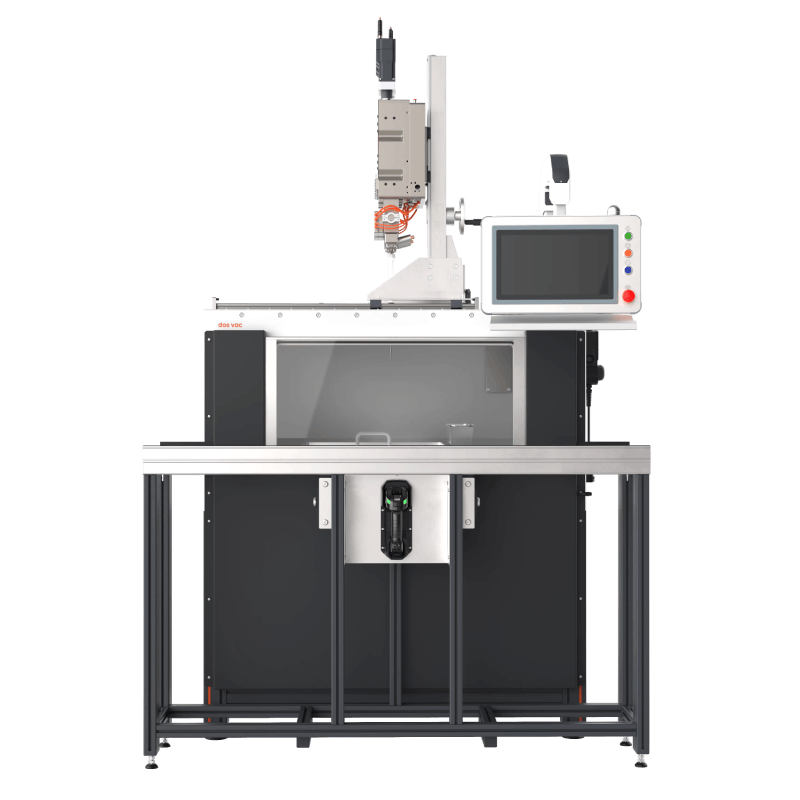

the standalone system at a glance
1
2
3
1
Dosing unit (1)
2
Material supply (2)
3
Kinematics (3)
Für einige anspruchsvolle Vergussanwendungen wird der Verguss unter Vakuum benötigt. Ein passendes Dosiersystem und eine effiziente Materialversorgung vervollständigen das Gesamtsystem. Dabei kombinieren wir Elemente aus folgenden Produktkategorien:
Dosing unit (1)
Das Standalone-System kann je nach Anwendung mit den verschiedenen Varianten des Kolbendosierer dos piston ausgestattet werden.
Material supply (2)
The material preparation and supply depends on the respective material and application. You can choose between dos prep light and dos prep
Kinematics (3)
Die Vakuumkammer dos vac mit integriertem Achssystem ist ideal für anspruchsvolles Vergießen unter Vakuum.
system basis
combinable dosers
Link to: dos piston

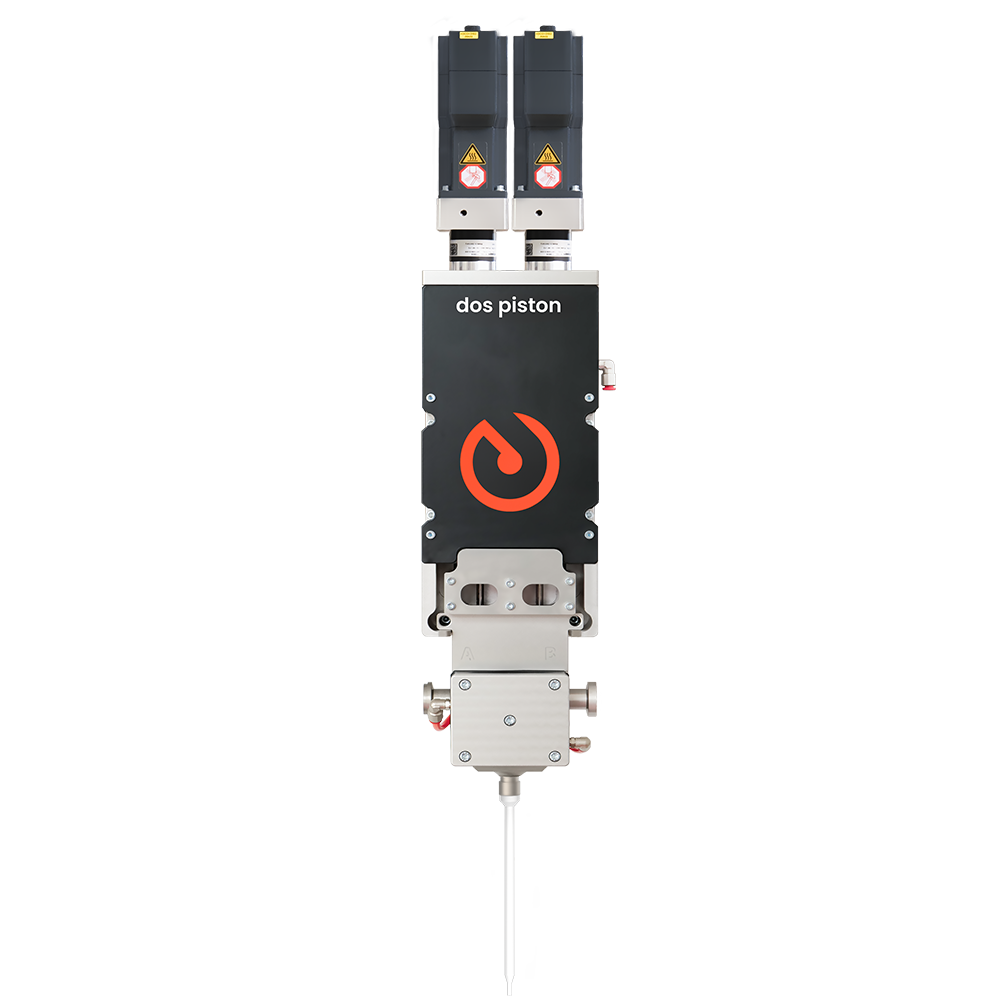

dos piston
piston dispenser
Material potting from
0.1 to 106 ml
For abrasive and non-abrasive materials
combinable material supplies
Link to: dos prep light

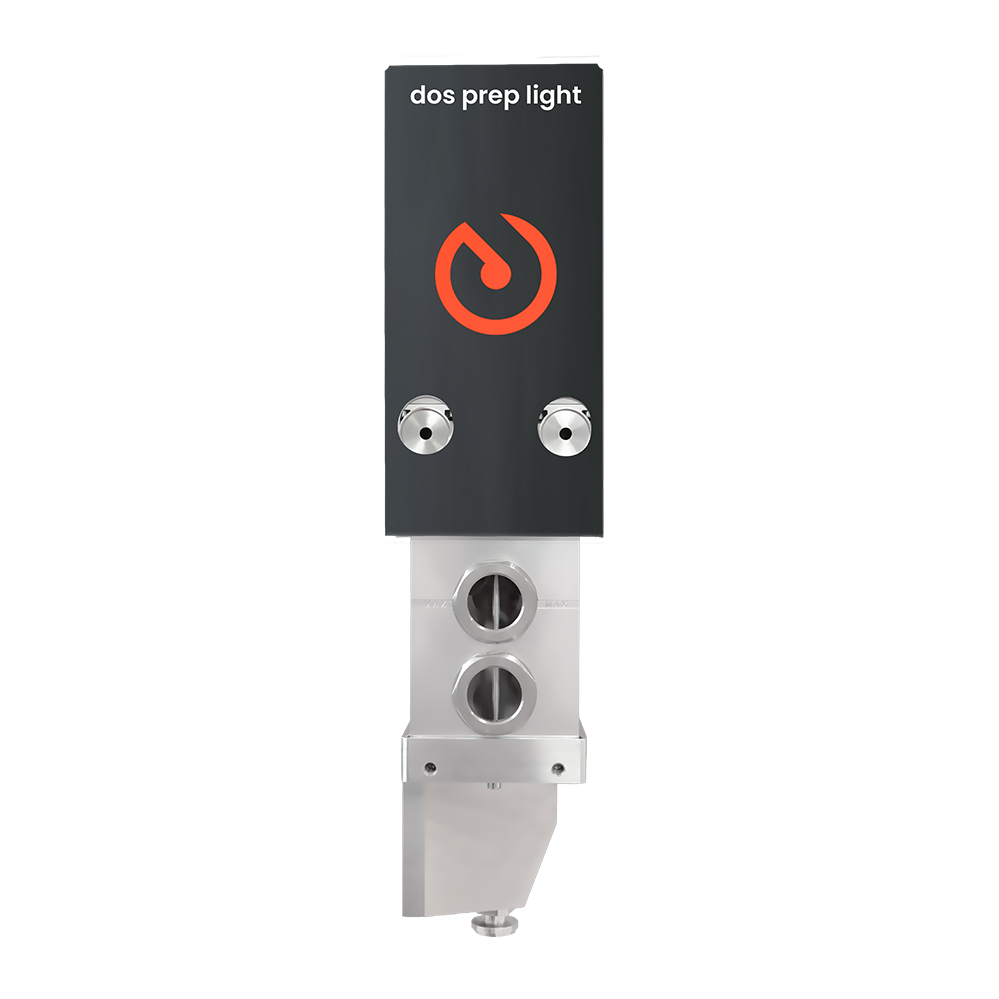

dos prep light
Filling volume 0.5 and 3 liters
Material viscosity up to 70,000 mPa-s
For abrasive and non-abrasive materials
Link to: dos prep

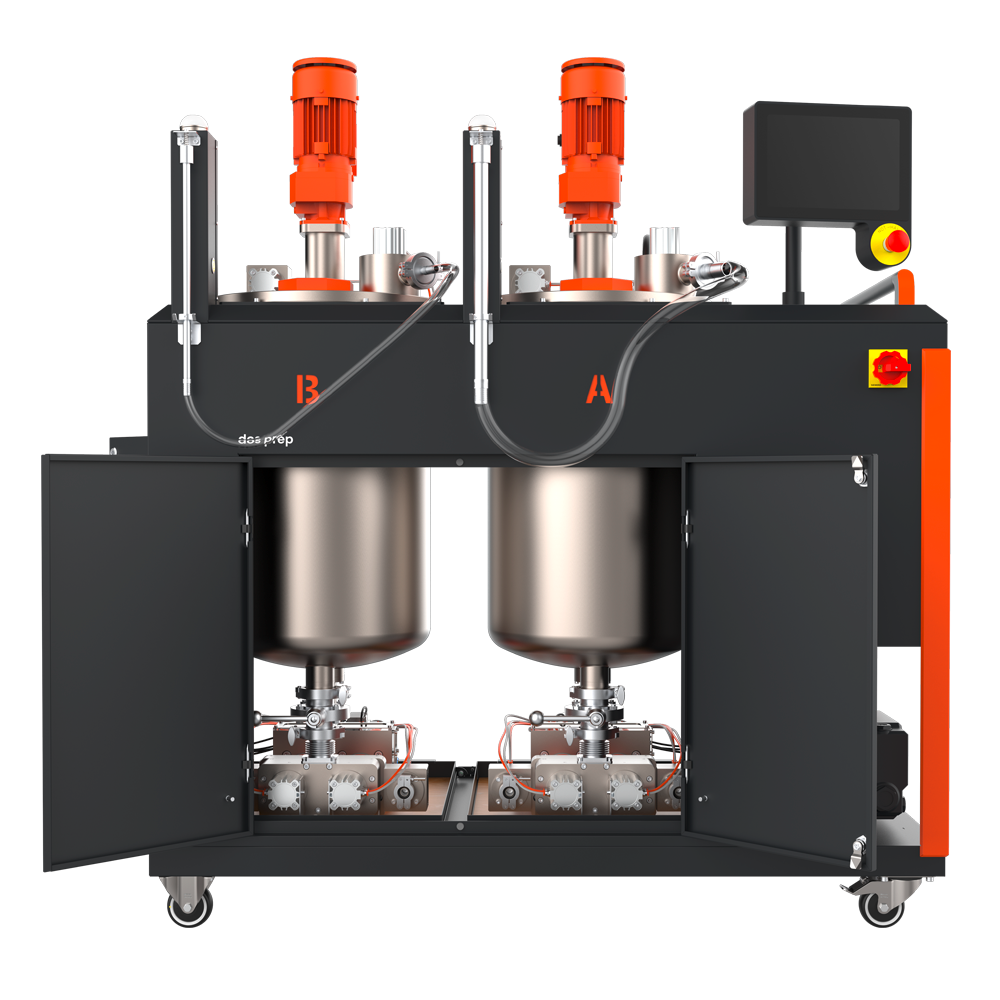

dos prep
Filling volume per boiler up to 60 liters
Material viscosity up to 70,000 mPa-s
For abrasive and non-abrasive
materials
